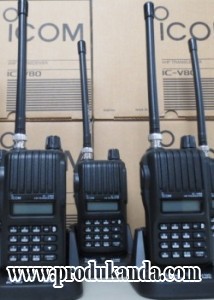

HT ICOM IC-V80

Harga :
CALL
Merk :
ICOM
Pembelian Minimal :
1 Unit
Pembelian Maksimal :
100 Unit
Pengiriman :
3 hari sejak pembayaran
Lokasi :
Dilihat :
136 Kali
Update Terakhir :
30-01-2016 11:21

Dapatkan Spesifikasi Harga HT ICOM IC-V80 Produk Terbaik dari Jual HT Online Handy Talky, Stopwatch, Tajima, Suunto, Safety, Radio Rig

Detail Produk

The Icom IC-V80-25 offers rugged, basic 2 meter performance in a rock solid package. You can select 5.5, 2.5 or 0.5 watts of output. Extended receive is 136 to 174 MHz. Enjoy built-in CTCSS/ DTCS Encode and Decode. 207 memory channels are featured including 6 scan edge and 1 call. And each memory can be labeled with up to 5 characters. Multiple scan types are available. The easy-to-use controls are very intuitive. The display backlighting may be set for On, Off or Off after 15 seconds of inactivity. There are also DTMF memory channels. Other enhancements include: wide/ narrow selectivity, removable jack cover, 750 mW of audio, backlit alpha display, weather channel alert ( USA version) , keypad, repeater lock-out, auto-repeater function, time-out timer and auto power off.

Features

* Wide / Narrow channel spacing
* 207 Memories
* Scanning
* Power Save
* Three RF Levels 5.5/ 2.5/ 0.5W
* Encode/ Decode Built In
* Time Out Timer
* 16 DTMF Memories
* Ergonomic Controls

IC-V80 Specifications

GENERAL
Frequency range
:
Version IC-V80
USA Tx 144-148 MHz
Rx 136-174 MHz
* Guaranteed range 144-148MHz
Europe 144-146 MHz
Mode : F3E, F2D, [ M]
Number of memory ch. : 207 ( 6 scan edges, 1 call)
Antenna connector : BNC ( 50 ohm)
Power supply : 7.2 VDC
Frequency stability : ± 2.5 ppm -12° C to + 60° C
Current drain ( at 7.2 V DC)
:
IC-V80
Tx High ( 5.5 Watts) 1.4A
Rx Max. Audio 310mA
Standby 65mA
Power save 20mA
Usable temp. range : -12° C to + 60° C; -4° F to + 140° F
Dimensions
( projections not included) : 58( W) × 112( H) × 30( D) mm
21D8( W) × 515D32( H) × 17D16( D) in.
Weight : 360g; 12.7oz ( with BP-264)
TRANSMITTER
Output power ( at 7.2 V DC)

:
IC-V80
High 5.5W
Mid 2.5W
Low 0.5W
Spurious emissions : Less than -60 dB
Max. freq. deviation : ± 5 kHz/ ± 2.5 kHz ( Wide/ Narrow)
Ext. MIC connector : 3-conductor 2.5( d) mm ( 1D103) / 2.2k ohm
RECEIVER
Receive system : Double-conversion super heterodyne
Intermediate frequencies : 1st 21.7 MHz
2nd 450 kHz
Sensitivity ( at 12dB SINAD) : 0.14 µ V typical
Squelch sensitivity ( at threshold) : 0.1µ V typical
Selectivity : 70/ 50dB ( Wide/ Narrow) typical
Inter modulation : 70/ 65dB ( Wide/ Narrow) typical
Spurious and Image rejection : 75dB typical
Audio output power : 750 mW typ. with an 16 ohm load
Ext SP connector : 3-conductor 3.5 ( d) mm ( 1/ 8 ” ) / 8 ohm
